Description

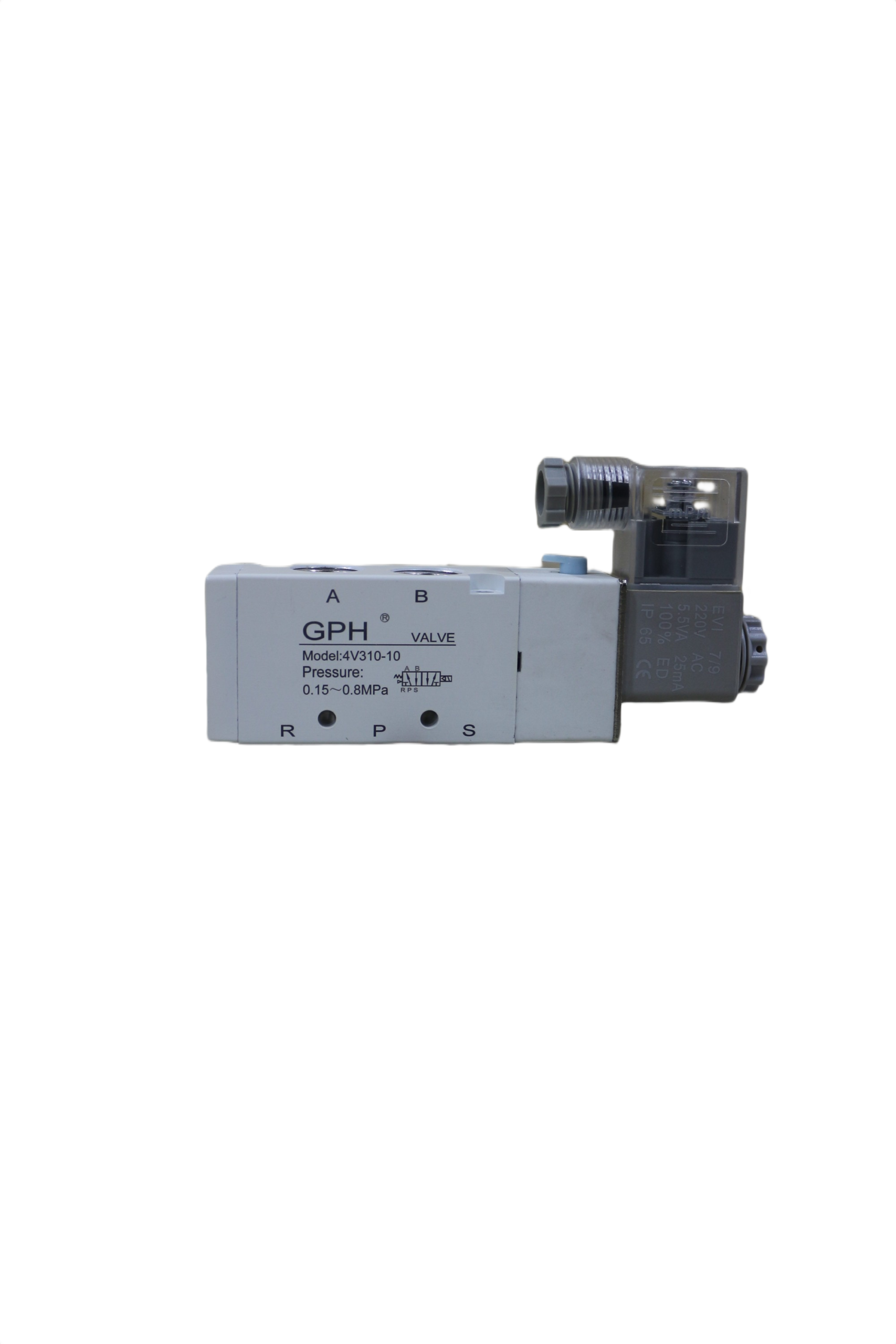

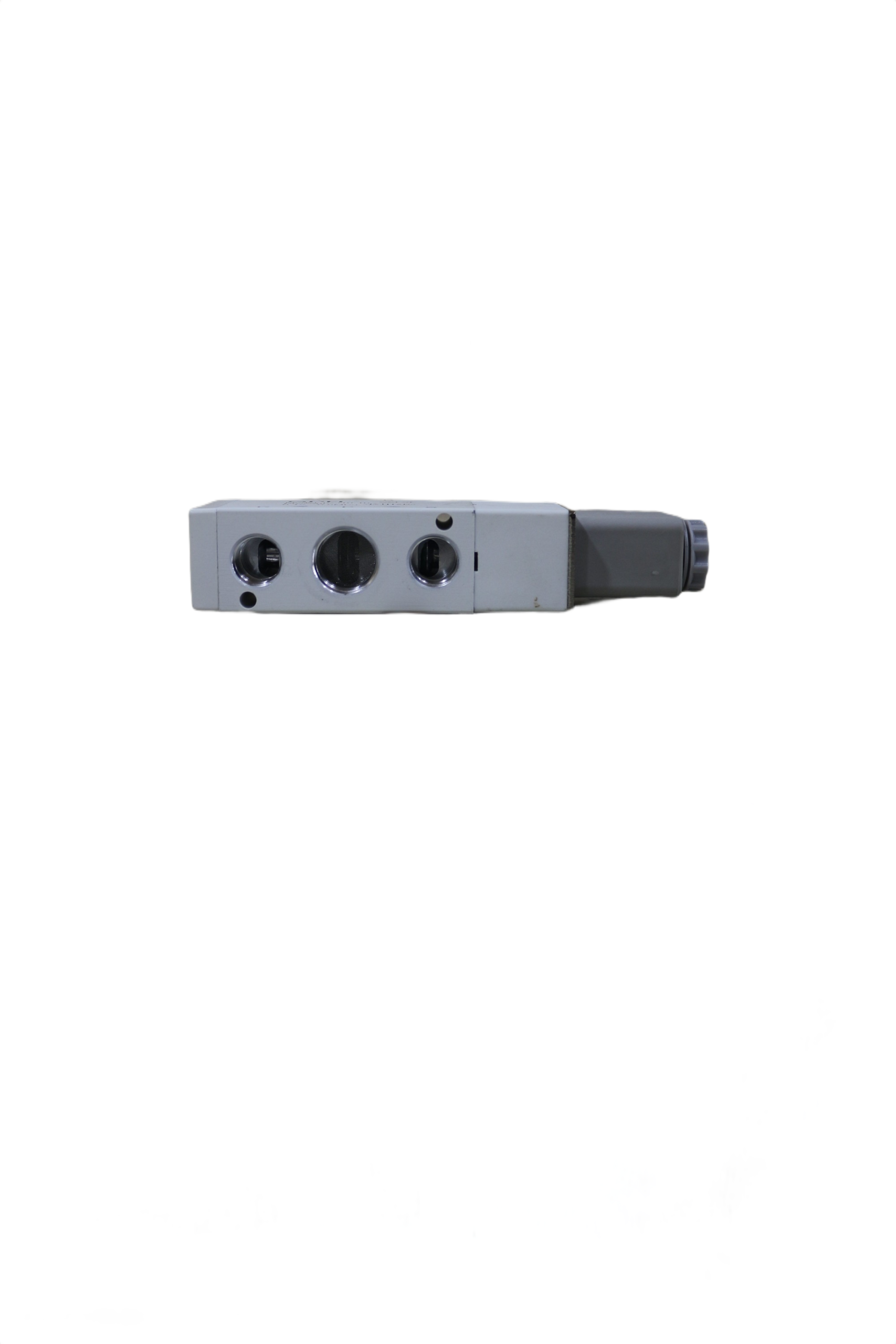

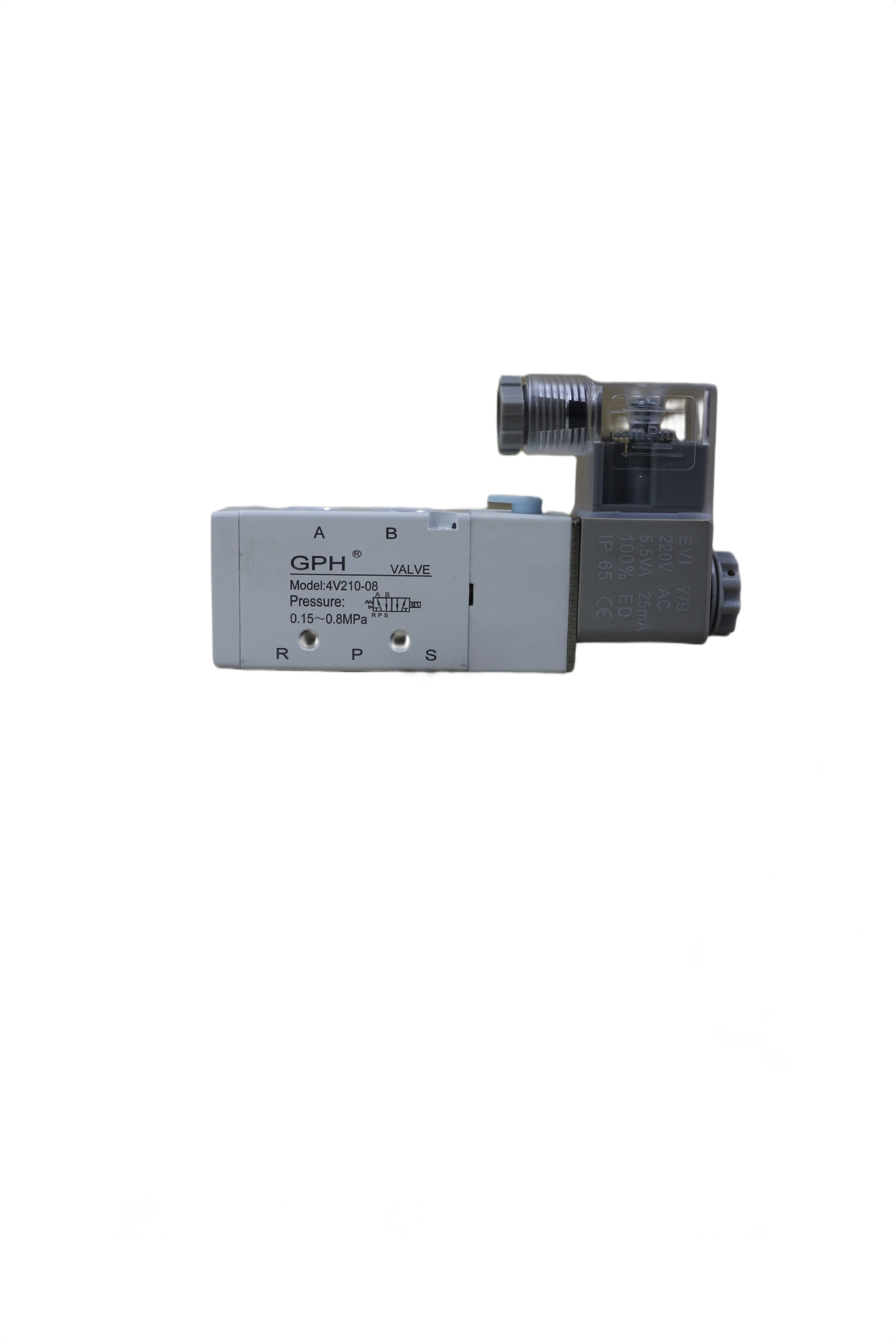

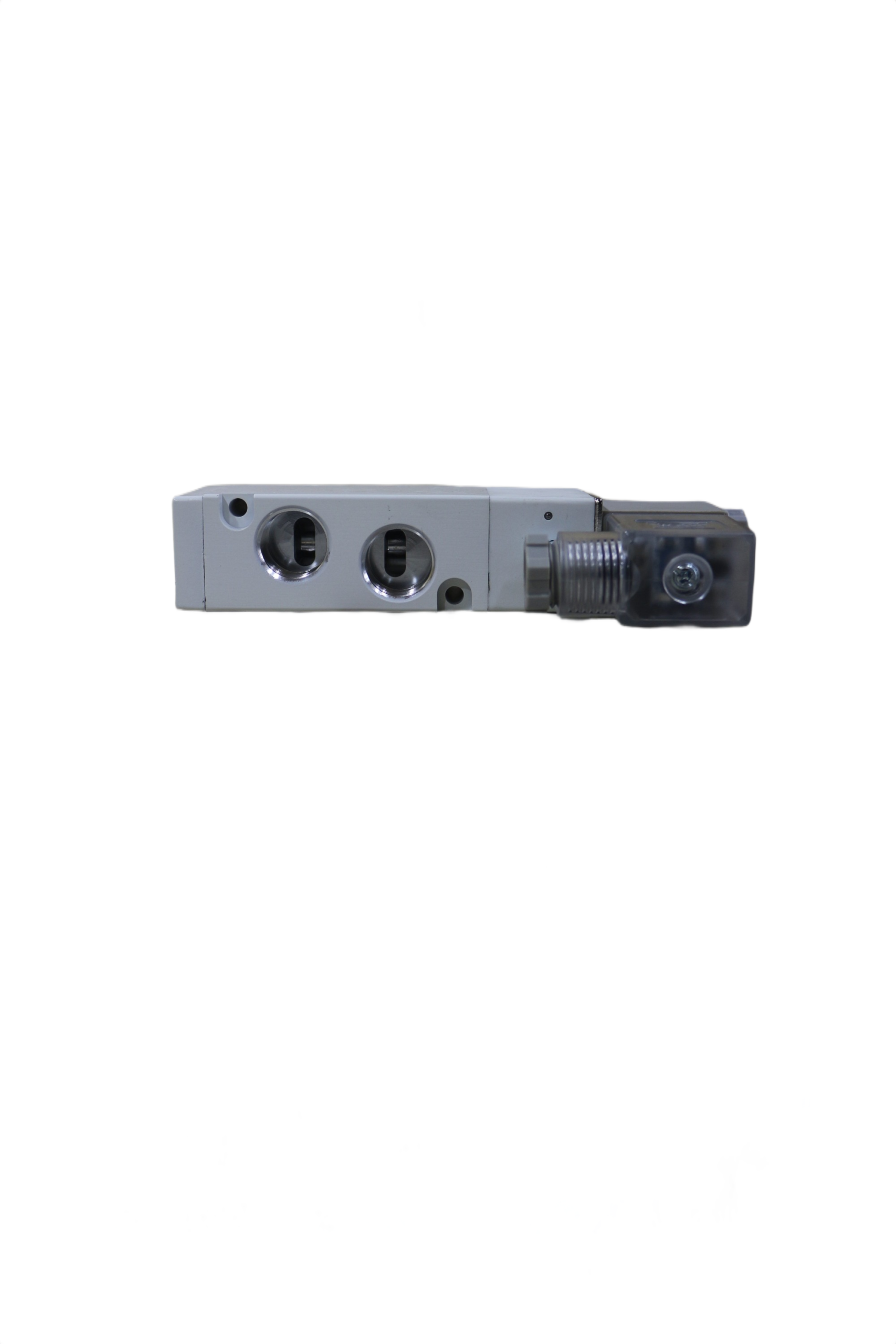

The GPH 4V310-10 Pneumatic Solenoid Valve is engineered to provide precise and dependable control of compressed air in pneumatic systems. Built with a robust aluminum alloy body and equipped with a high-quality 220V AC coil, this valve ensures fast response, long service life, and continuous operation in demanding industrial environments.
Designed for use with double-acting pneumatic cylinders, the valve efficiently directs airflow between pressure and exhaust ports, making it an ideal solution for automation, manufacturing, packaging, textile machinery, CNC equipment, and industrial production lines.
With an IP65-rated coil, the valve is protected against dust and water ingress, ensuring reliable performance even in harsh working conditions.
Key Features
✔ High-quality GPH pneumatic solenoid valve
✔ Model: 4V310-10
✔ 220V AC solenoid coil
✔ 5/3-way directional control valve
✔ Fast switching and reliable operation
✔ Durable aluminum alloy construction
✔ Continuous duty (100% ED)
✔ IP65 protection rating
✔ Suitable for industrial pneumatic automation
✔ Easy installation and maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GPH |
| Model | 4V310-10 |
| Valve Type | 5/3 Way Pneumatic Solenoid Valve |
| Operating Medium | Filtered Compressed Air |
| Coil Voltage | 220V AC |
| Power Consumption | 5.5 VA |
| Current | 25 mA |
| Working Pressure | 0.15–0.8 MPa |
| Protection Class | IP65 |
| Body Material | Aluminum Alloy |
| Duty Cycle | 100% Continuous Duty |
| Port Identification | P, A, B, R, S |
Applications
The GPH 4V310-10 Pneumatic Solenoid Valve is widely used in:
- Industrial automation systems
- Pneumatic control panels
- Double-acting air cylinders
- Packaging machinery
- Textile machines
- CNC machines
- Conveyor systems
- Food processing equipment
- Manufacturing plants
- Robotics and automation projects
Package Includes
- 1 × GPH 4V310-10 Pneumatic Solenoid Valve
- 1 × 220V AC Solenoid Coil
- DIN Electrical Connector
